In the world of network cabling, a well-known “100-Meter Golden Rule” is almost universally acknowledged: the reliable transmission distance of standard twisted-pair network cables should not exceed 100 meters. Beyond this limit, the signal degrades dramatically, data becomes unstable, and network speeds plummet at best, or even connection loss occurs at worst.
It’s like a 100-meter race; even the best runners are exhausted by the finish line. So, when we need to transmit network signals to a workshop, warehouse, surveillance camera, or another building 200 meters, 500 meters, or even a kilometer away, is the only option to rewire the entire network using expensive fiber optic cables?
The answer is no. A media converter is the key to solving this dilemma.
What is a media converter? How does it “extend the life” of copper cables?

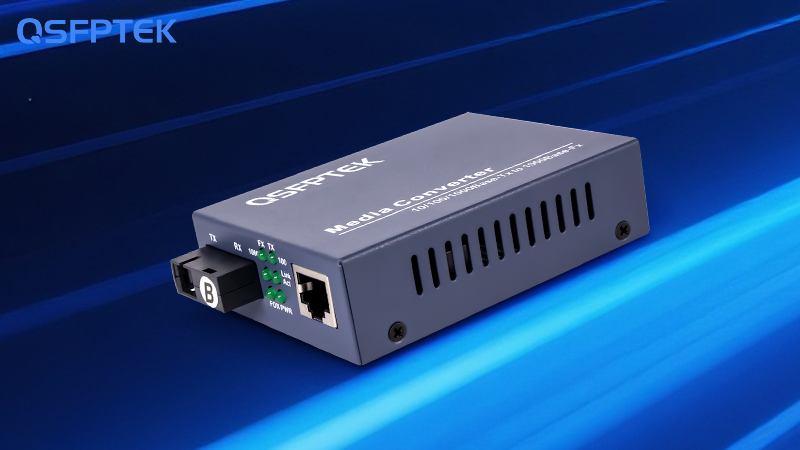

Media converters, as the name suggests, are devices that convert signals between different media. Its core mission is to build a “translation bridge” between copper cables (twisted pair) and optical fibers.
Its workflow is remarkably sophisticated:
Receiving: Receives standard electrical signals (copper cable signals) from the RJ45 network port of a device like a switch or router.
Conversion: Within the device, a dedicated chip “reshapes” the weakened electrical signal into a clear, pure digital signal, which is then converted into an optical signal.
Transmitting: Through a fiber optic interface, the optical signal is injected into the thin fiber for long-distance transmission.
Reverse Conversion: At the other end of the fiber, another media converter performs the reverse process, converting the optical signal back into an electrical signal, which is then transmitted via the network cable to devices such as computers and cameras at the end.
Through this “electrical-optical-electrical” conversion, the signal, once exhausted within the copper cable, is “recharged,” easily traveling across kilometers in the form of light, and ultimately converted back into a perfectly recognizable network signal that the end device can understand. It’s like a tired sprinter switching to a high-speed race car at the finish line of the 100-meter race and continuing their race into the distance.
Beyond 100 Meters: Why Choose a Media Converter?
Beyond the core benefit of extending distance, media converters offer many unexpected advantages:
Extremely cost-effective: This is their most attractive feature. For scenarios where a large copper cabling infrastructure already exists but individual nodes require long-distance transmission, there’s no need to deploy a full fiber optic cable run just for the last few hundred meters. Simply add a pair of media converters at the end of the copper cable and bridge it with a single fiber optic cable. This solves the problem at a very low cost, protecting existing investments.
Strong Anti-Interference Capability: Optical fiber, made of glass or plastic, transmits data via light pulses, making it completely immune to electromagnetic interference (EMI) and radio frequency interference (RFI). This is crucial in complex environments like factory floors, near power facilities, and on rail transit, ensuring stable network signals.
Improved Security: Copper cables radiate weak electromagnetic signals, theoretically making them susceptible to eavesdropping. Optical fiber, on the other hand, does not radiate any signals. Any physical eavesdropping would attenuate the optical signal and be immediately detected. Therefore, it is a preferred choice in sectors with stringent data security requirements, such as government and finance.
Flexible Deployment: Media converters are available in a wide variety of configurations, from desktop to rack-mount, single-port to multi-port, and from 100Mbps to 10Gbps. Users can flexibly choose based on actual distance, bandwidth requirements, and installation environment. For example, a reliable industrial-grade media converter can operate stably in harsh outdoor or industrial environments, providing a durable connection for automated equipment.
Real-World Application Scenarios
Smart Security Surveillance: A core camera in a large campus, port, or farm often needs to be deployed hundreds of meters away from the equipment room. Using a media converter combined with fiber optics ensures stable transmission of high-definition video streams.
Industrial Automation: A factory’s central control room needs to communicate with remote PLCs, sensors, and control cabinets. Media converters ensure accurate and timely delivery of control commands in noisy industrial environments.
Campus and Enterprise Network Expansion: A media converter is the most economical and fastest solution for seamlessly connecting an old office building (copper cable network) to a newly built R&D center (fiber backbone).
Retail and warehousing: Cash registers and warehouse management system terminals in large supermarkets or warehouses need to be connected to core equipment rooms, often spanning distances exceeding 100 meters.
Conclusion
The beauty of technology lies in its ability to overcome limitations. Media converters may not be the most dazzling star on the stage, but they are an indispensable cornerstone product in the network world. They cleverly combine the affordability of copper cables with the power of fiber optics, intelligently breaking the shackles of physical distance and pushing the boundaries of connectivity even further.
The next time your network planning is plagued by the “100-meter red line,” don’t forget the media converter. It may be the key to unlocking a broader world of connectivity.
